Hardware

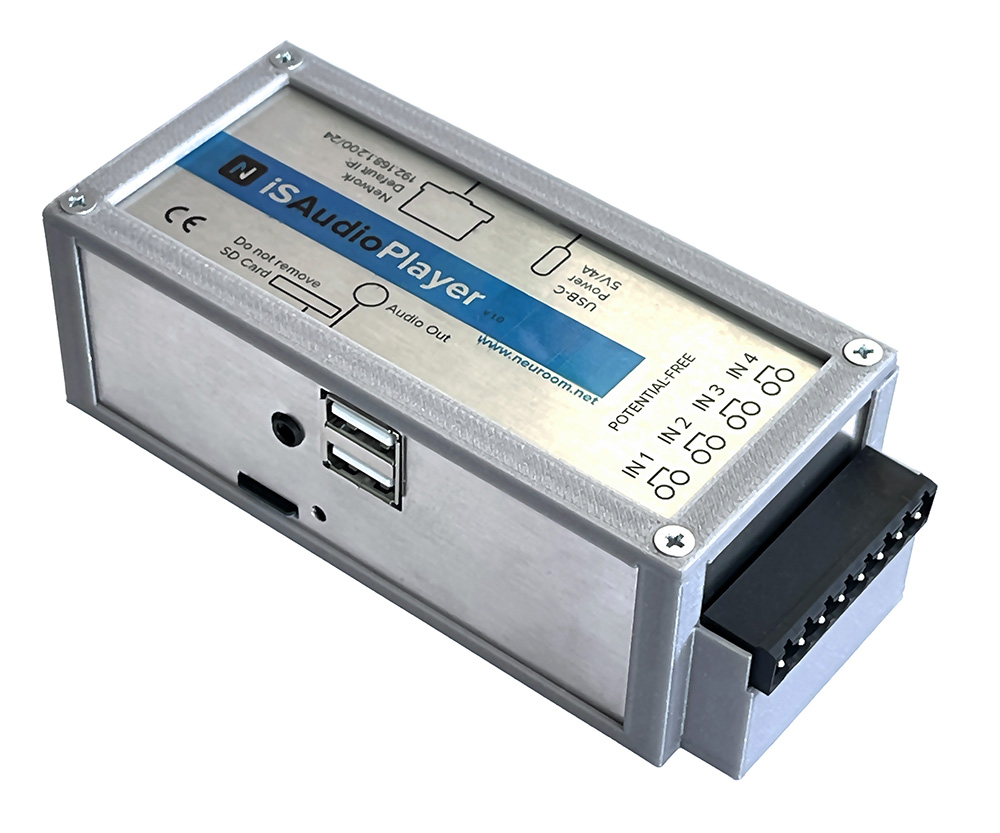

The iSAudioPlayer has a small, lightweight aluminium housing with easy connection options. The player can be programmed via the USB programming interface or network connection. A loudspeaker or iSHearo handset can be connected via Audio Out. As there is no integrated amplifier, an external amplifier can be connected in between as required.
Technical data
- Debian, ARM64 , 4GB LPDDR4 RAM
- 8 GB SD card for operating system and file storage
- Audio out: 3.5mm audio output
- 4 potential-free inputs
- Accessories: USB-C power supply.
- Dimensions: 55 x 40 x 140 mm
- Weight: 135 g
- Connections: USB C power, network, jack plug 3.5 audio output, USB programming interface, USB audio output, plug-in connection block: 4 inputs
Analog Output Configurations (only in iSAudioPlayer 2.0)
The new generation iSAudioPlayer 2.0 contains a TAD5242 hardware-control stereo audio DAC with 120dB dynamic range, and headphone and line driver.
The device supports playback of two channels using the high-performance stereo DAC. The device consists of two pairs of analog output pins (OUTxP and OUTxM) which can be configured in single-ended or differential input mode by setting MD4 and MD5 pins. The input source for these channels is from TDM/I2S/LJ interface. The table below shows the analog output configuration modes available with MD4 and MD5 pins.
Analog Output Configurations
| MD5 | MD4 | ANALOG OUTPUT CONFIGURATION |
|---|---|---|
| Low | Low | Differential Output; Line-out only |
| Low | High | Differential Output; Receiver/Headphone load or Line-out |
| High | Low | Single-ended output; Line-out only |
| High | High | Pseudo differential output with external common-mode sense; Headphone load only |
