GEO coordinate (`geo-point`)

{
    "application": "Tutorial",
    "label": "GEO Koordinaten",
    "project": "inSynergie CMS",
    "tags": [],
    "fields": {
        "place": {
            "cms": {
                "column": true,
                "label": "City"
            },
            "empty": false,
            "type": "string"
        },
        "gps": {
            "cms": {
                "column": true,
                "label": "Coordinates"
            },
            "optional": true,
            "type": "geo-point"
        }
    },
    "hideId": true
}

Currently only a single coordinate (Point) is supported.

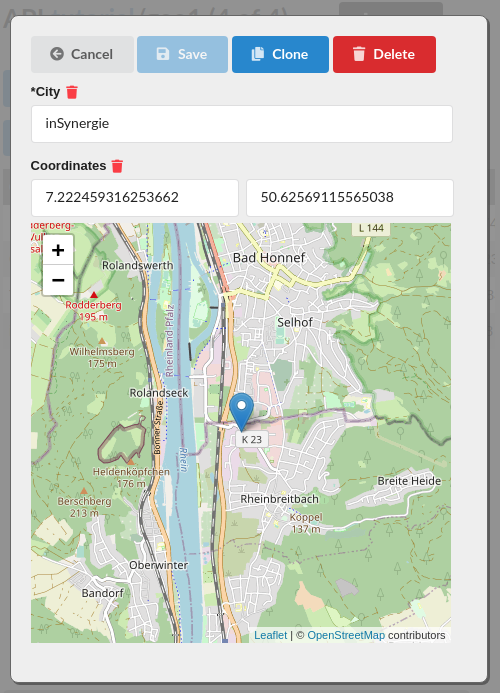

Form

The coordinate is stored as a pair of longitude and latitude. The interface uses a slightly extended representation that will in future also leave room for areas or arbitrary outlines:

{
    "type": "Point",
    "coordinates": [7.25331, 50.69547]
}

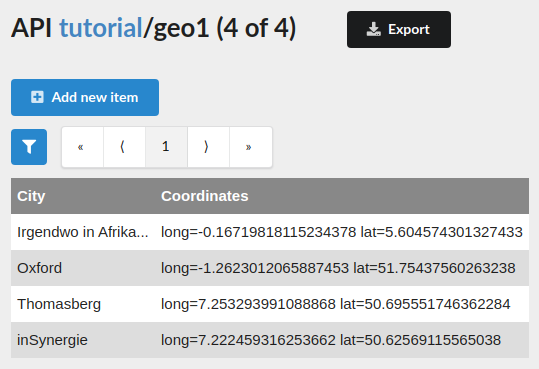

In the list, the numeric values are currently simply displayed:

List

Parameters

GEO coordinates are a CMS-specific type with no equivalent in fastest-validator. The only parameter is optional. They are not localizable.

/** Point on the earth. */
interface IGeoPoint {
    /** Longitude and latitude, in this order. */
    coordinates: [number, number]
    /** Marks a single point. */
    type: 'Point'
}

For queries there is the operation $near, see Queries.
